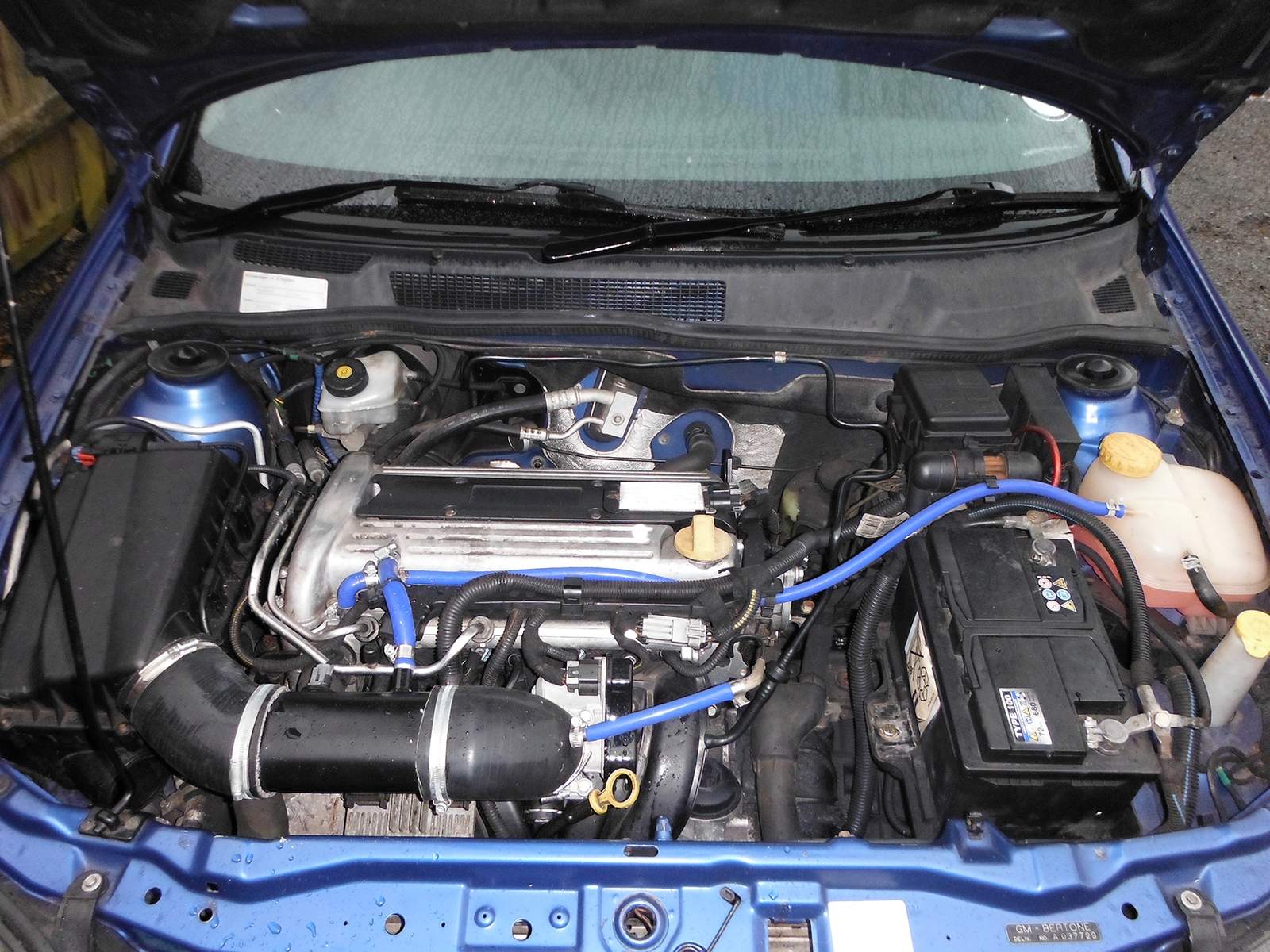

The hoses fit quite well, but I made a few changes and also still need to make a few more.
One of the main changes I made and still need to adjust is the way the two hoses meet @ the rocker cover.
I actually resorted to a 8mm 90° elbow bend & 8mm straight connector as the hose kinked. I trimmed it to suit but still need a little more trimming as they both foul slightly.
8mm bend here
I also now have 3mm ID hose (new part not fitted yet) as you can see the old half hose (8mm bodge not fitting right) connecting to the original from above the TB running.
3mm hose here
I also have a 10mm ID hose to test out for the breather from the rocker to the inlet. Whats there (13mm) is fine but a little loose for my liking.
10mm hose here
The hose from the rocker to the water bottle fits well which is 8mm ID, its just not form shaped as the original.
