Today i changed the wiring of my Trottle.
The wiring i found in this forum isn´t right for the Astra
chribo said:
pin A loom - blue still goes to plug A - blue
pin B loom - brown/black goes to plug H - black/brown
pin C loom - black/white goes to plug G - brown
pin D loom - blue still goes to plug D - blue
pin E loom - brown/red goes to plug F - black/red
pin F loom - black/red goes to plug E - brown/red
pin G loom - brown goes to plug C - black/white
pin H loom - black/brown goes to plug B - brown/black
heare is de modified wiring for the Astra
pin A loom - blue still goes to plug A - blue
pin B loom - brown goes to plug H - black/red
pin C loom - black/red goes to plug G - brown
pin D loom - blue still goes to plug D - blue
pin E loom - brown/white goes to plug F - brown/red
pin F loom - brown/red goes to plug E - brown/white
pin G loom - brown goes to plug C - black/red
pin H loom - black/red goes to plug B - brown

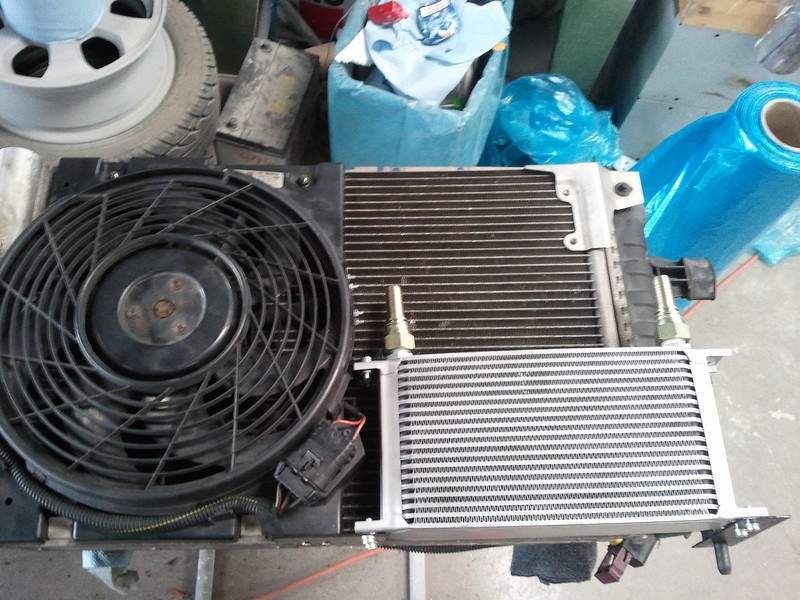

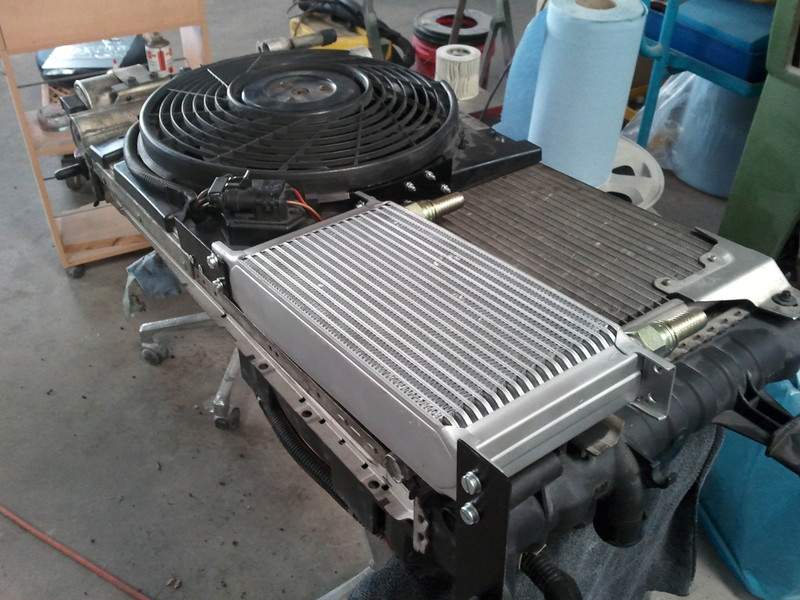

I also fittet the chargercooler to my coolerpackage:
Tomorow i want to finish the wiring and mybe fit the chargercooler hoses.
Chris
