Head porting issues

Barchetta

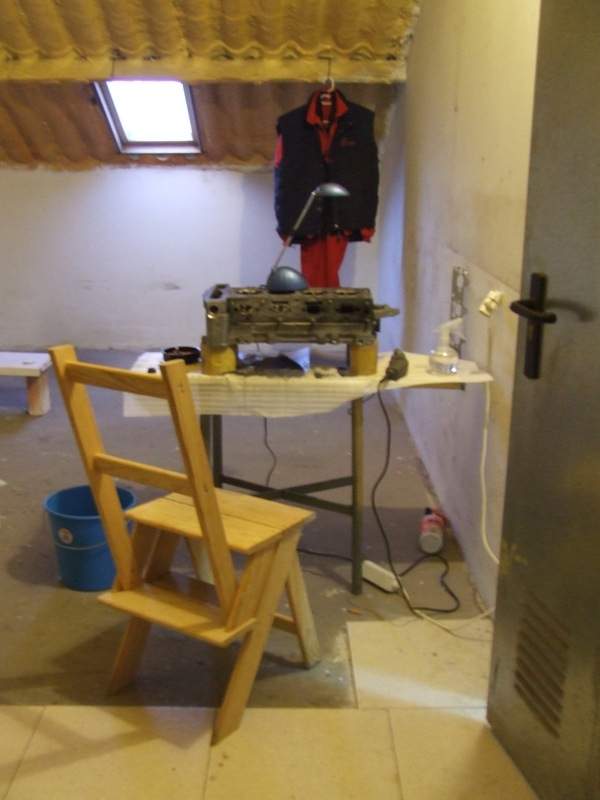

My machining shop, with flow bench to the right on the table.

Uploaded with ImageShack.us

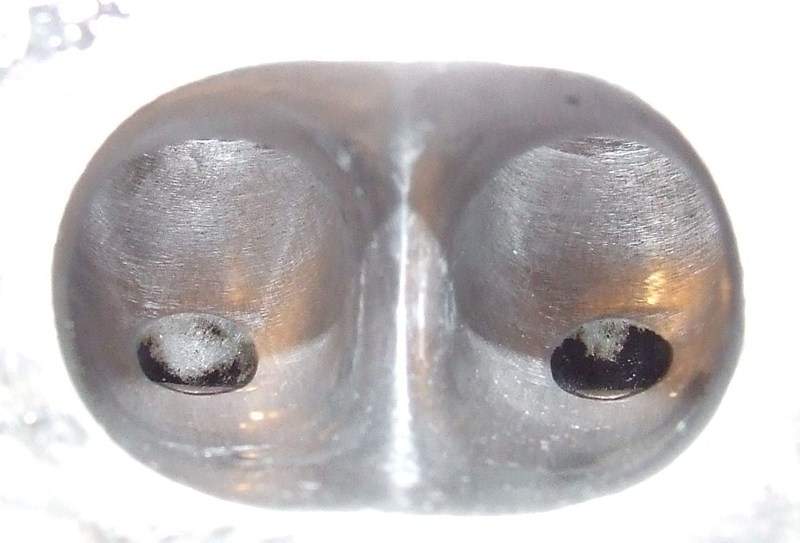

Exhaust port

Uploaded with ImageShack.us

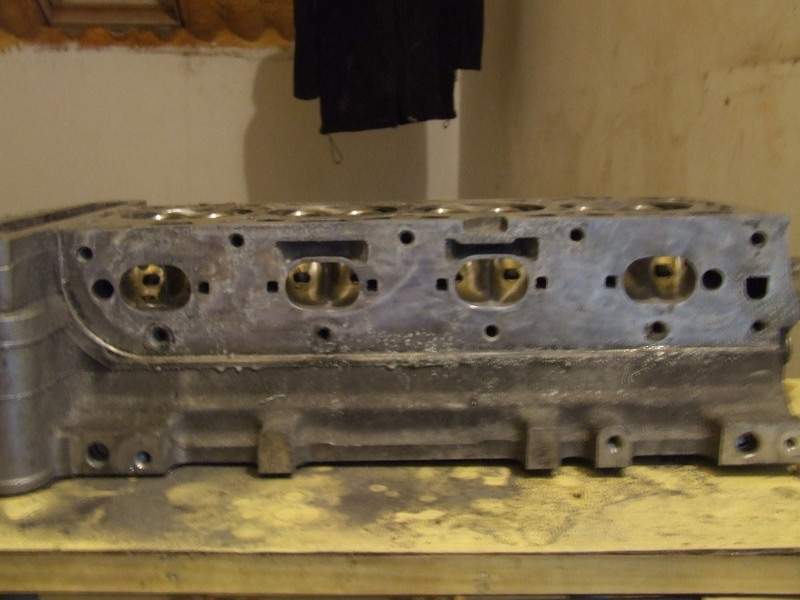

Exhaust ports polished

Uploaded with ImageShack.us

Intake port WIP.

Uploaded with ImageShack.us

I have doubts about the volume of the intake ports, the exhaust ports have 80cm3. Any advice??

Thanks.

vocky

the inlets are quite big already, just clean the surfaces and remove any casting lines

Barchetta

big already for...? 1000 hp turbo ecotecs? 250 n/a? dunno..

vocky

perfectly fine for under 300bhp

Barchetta

not enough 😃

sdbutler10

Looking good what tools you using?

Barchetta

Dremel, sandpaper and water.

Uploaded with ImageShack.us

Barchetta

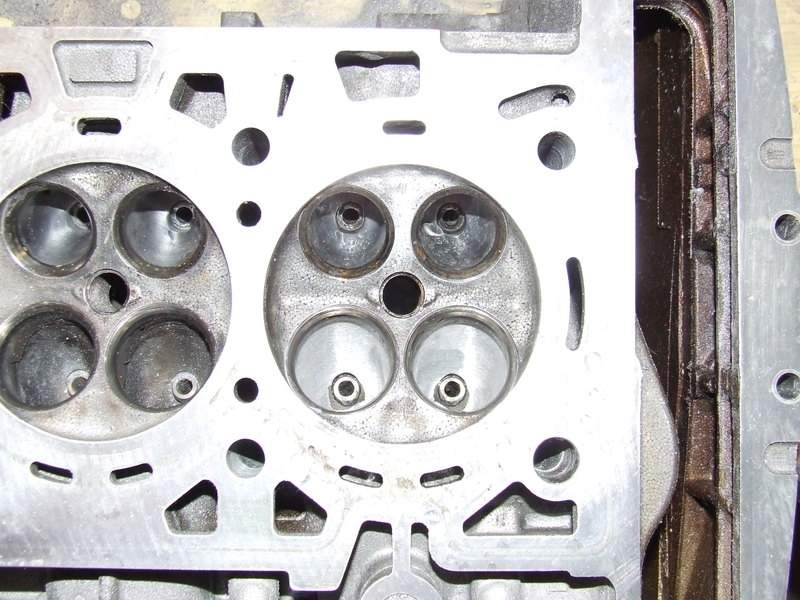

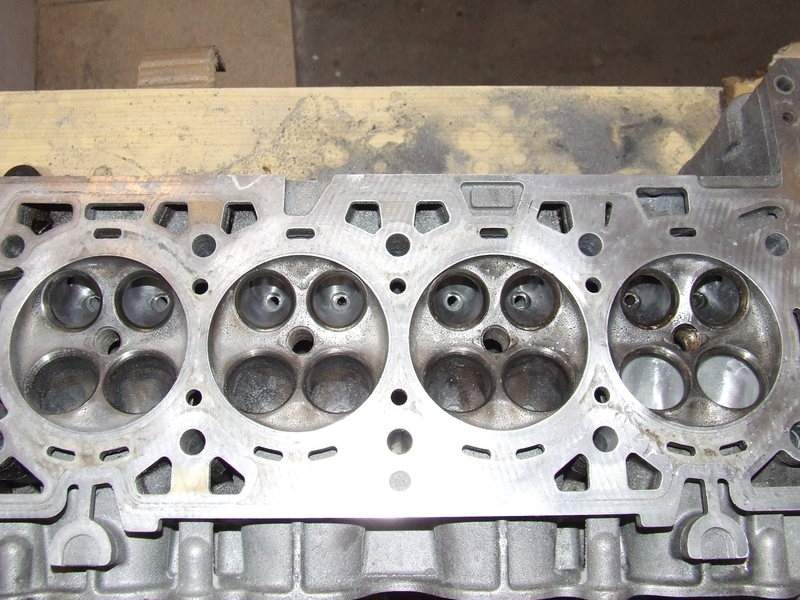

I'm thinking to weld up and modify the combustion chambers to increase the C.R. without ¿skim? the head. And because the stock design don't burn very well all the fuel.

vocky

will the valves still open ok dunno..

sdbutler10

Also won't u lose some flow of the gasses around the back of the valves where it opens if u weld that area up?

Barchetta

Guy Croft XE head
http://www.guy-croft.com/viewtopic.php?t=757

There would be no problem with that, in theory, better fuel burn.
http://www.discodordon.com/go-pwr.com/attribute.php?cat_id=15
