Do you think it's fooked?

winstar

TheHood said:
Interesting stuff.

I suppose there's no OEM forged pistons from within this GM engine family that would work in the z22se?

SAAB/LSJ/Z20NET pistons are but have a larger pin diameter so would need custom rods or the whole 2.0 crank assembly.

slindborg

techieboy said:
I'm sorry but that doesn't sound brutal enough for you Stuart. 😃

rev to the limiter from cold 😃

that better? lol

techieboy

slindborg said:

rev to the limiter from cold 😃

that better? lol

Now that's I'm talking about. Proper unequivocal advice that even I can't get wrong. :thumbup: :wink:

techieboy

Right, pistons and rods are now in my hands (and the pistons still look like a nice bit of kit to me). I've also just received a large parcel of the "bits and pieces" that also need replacing as part of this rebuild. Not sure whether it's of any use but below is a list of the parts and the current AutoVaux prices (all +VAT):-

Part No   Description                          Quantity  Unit Cost
11519783  CRANKCASE TO CYLINDER BLOCK BOLTS      20         £1.06
9194165   CRANKSHAFT BEARING GUIDE (STD size)     1        £25.53
9194163   CRANKSHAFT BEARING (STD size)           4         £2.11
9194705   CONNECTING ROD BEARING (STD size)       4        £10.27
90571925  CRANKSHAFT FRONT SEAL RING (non-GM)     1         £5.17
90325572  CRANKSHAFT REAR BEARING SEAL            1         £9.98
12577385  TIMING CHAIN KIT                        1        £93.10
12576647  BALANCE CHAIN KIT                       1        £89.59
9198195   OIL COOLER CONNECTOR SEAL RING          2         £1.92
9197883   OIL FILTER CAP 'O' RING                 1         £2.36
93175493  OIL FILTER ELEMENT                      1         £3.58
90537241  VALVE STEM SEALS                       16         £1.73
11589123  CRANKSHAFT PULLEY BOLT                  1         £3.02

Some of the above we could probably have got away without replacing but not worth the risk IMHO. Just got to go and pick up my Saab head gasket from the local Saab dealership and that's all of the bits that I need. With hindsight, I should probably have asked AutoVaux if they could get them as they have a regular GM part number but didn't think about it at the time I reeled off the list of parts to them. Everything bar the rear crank seal is a genuine part.

Thanks again to AutoVaux for a quick and painless transaction (although I do seem to be speaking to them altogether to often).

slindborg

when you tell them your name and they know your address without looking it up on the computer is when you talk to them too often 😉

techieboy

Nearly there. Engine goes back in this week. Just in time for the lousy weather.

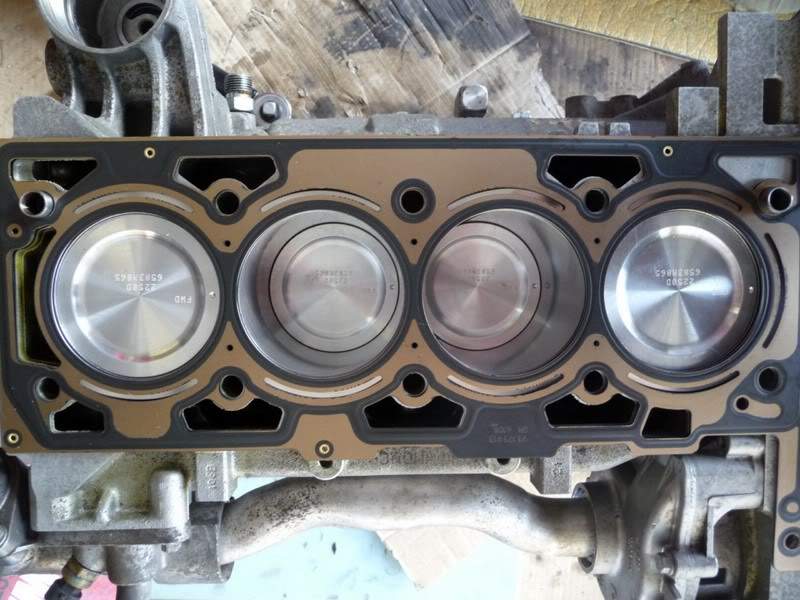

New cylinder block, rods and pistons (looking a bit healthier than the earlier shots) and Saab head gasket

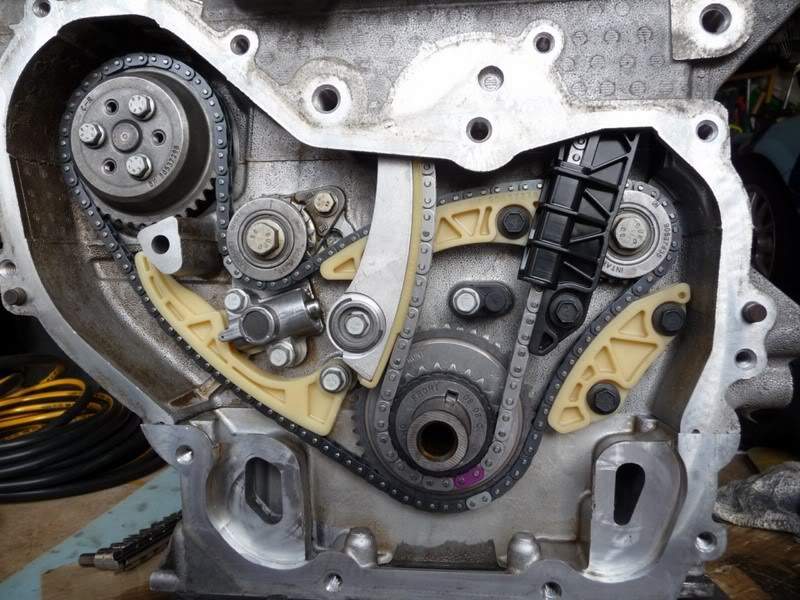

Balancer shafts deleted (again) and 3rd new set of balancer and timing chains in 2 years, timed up and ready to go

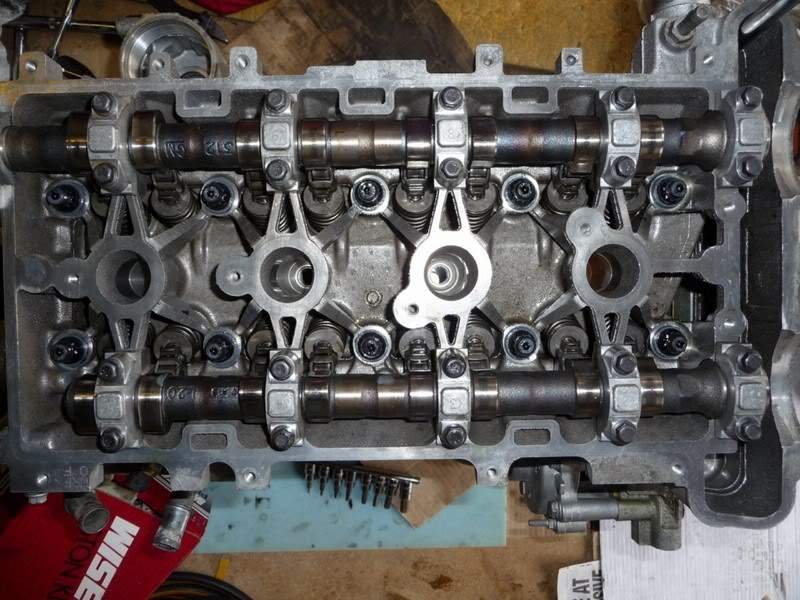

Original ported head but with Saab sodium filled exhaust valves and Saab Aero cams (fingers crossed they'll be suitable)

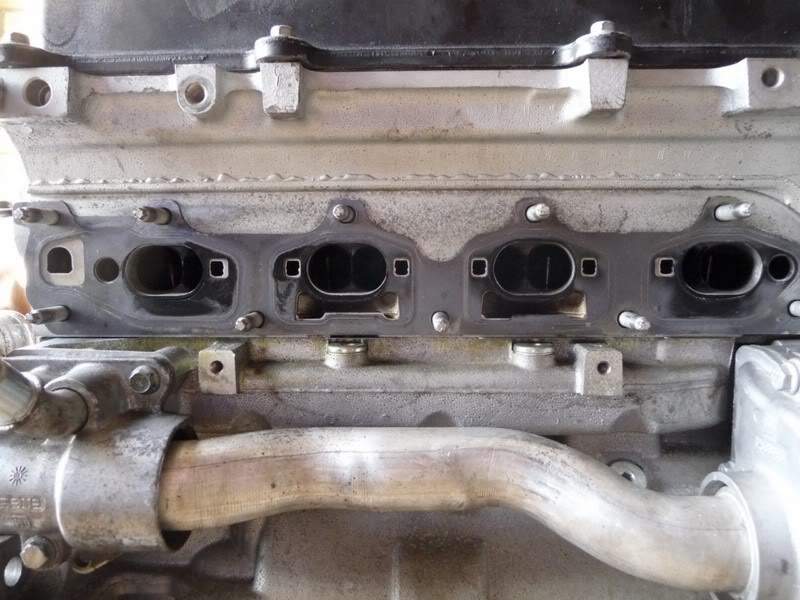

and with the exhaust ports opened up to match the TMS 4-1 manifold

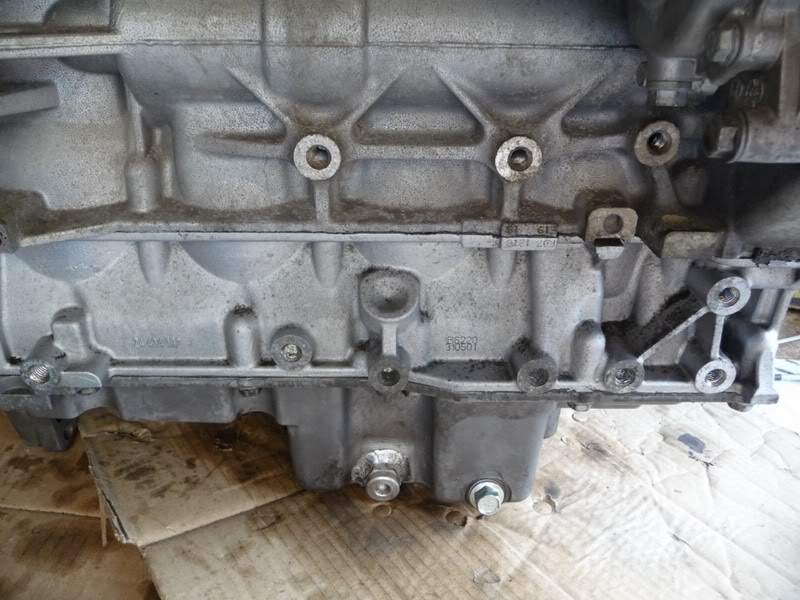

New sump oil temp sensor boss

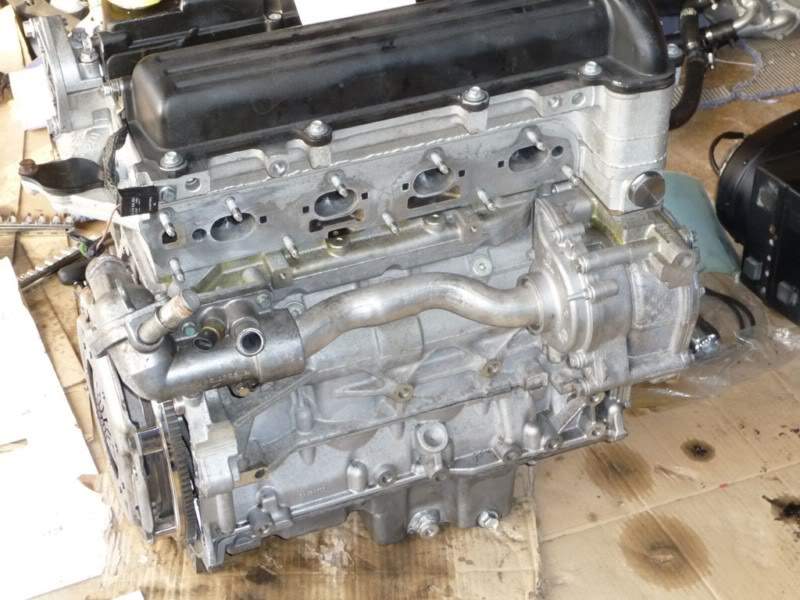

All ready to go back in

So hopefully a little power boost as well as a more reliable rebuild this time around. :crazy:

Sjdickso

Hope it all goes good for you this time.

rik1083

good luck!

did you chop the end of the saab exhaust cam?

Matt

Nice one Matt, as said, hope this goes back in OK and trouble free.

techieboy

Sjdickso said:
Hope it all goes good for you this time.

Matt said:
Nice one Matt, as said, hope this goes back in OK and trouble free.

rik1083 said:
good luck!

did you chop the end of the saab exhaust cam?

Cheers chaps!

Yes, the Saab exhaust cam had the end machined off. Theoretically it should work pretty well with the SC'd engine but we'll have to see what happens once it's up and running. Hopefully it won't be so extreme as to introduce any rough idle, fuelling or emissions problems but will help it all breathe a bit better. That's the theory anyway..... notsure.gif

JohnnyN

Brilliant Matt! Try to look after this one! lol!

;-)

TheHood

What clearence did you go for with the Wiseco pistons in the end Matt?

vocky

you forgot to mention the ring gaps were all measured for their respective bores, yes we checked everything this time :lol:

vocky

TheHood said:
What clearence did you go for with the Wiseco pistons in the end Matt?

as per wiseco paperwork, they designed the pistons so they should know what size the rebore needs to be dunno..

techieboy

TheHood said:
What clearence did you go for with the Wiseco pistons in the end Matt?

vocky said:

TheHood said:
What clearence did you go for with the Wiseco pistons in the end Matt?

as per wiseco paperwork, they designed the pistons so they should know what size the rebore needs to be dunno..

Yep, the standard Wiseco specced clearance. I had a chat with the guy who was doing the rebore and mentioned that there was some speculation as to whether that was too tight, or not. He said he'd do it to whatever size I wanted but that he personally wouldn't be comfortable doing it to anything different to manufacturers spec, especially as the pistons are quite short and don't have deep skirts.

Vocky did measure each and every ring gap (repeatedly) and there was some variance between some of the rings so we did increase the size of the gap to Wiseco's recommended street/turbo/nitrous gap specification.

techieboy

All back together again with a lovely fresh strengthened engine in. Just the MOT and running in to do now....

Lovely smooth and quiet idle even with the Saab Aero camshafts in.

rik1083

techieboy said:

TheHood said:
What clearence did you go for with the Wiseco pistons in the end Matt?

Vocky did measure each and every ring gap (repeatedly) and there was some variance between some of the rings so we did increase the size of the gap to Wiseco's recommended street/turbo/nitrous gap specification.

how do you increase the gap?

techieboy

rik1083 said:

how do you increase the gap?

Dremel with grinding wheel attachment on it. Probably not ideal but bloody efficient.

JohnnyN

WTF is going on with the camo paintwork??? I like it!

:thumbup:

techieboy

JohnnyN said:
WTF is going on with the camo paintwork??? I like it!

:thumbup:

It's the remnants of this years Le Mans theme. Haven't plucked up the courage to remove it yet. It's starting to look a little battered in places, so will need to come off sooner, rather than later. Joy. :crazy:

Little clearer here:-
