OE grill with a bit of coding

Sjdickso

I currently have a Irmsher cross hatch grill but thought i may sell it and go back to OE. I liked how timmee had his new corsa colour coded so.

I already had the old grill but it was ditched apart from the chrome grill, Rob sold me spare at a very good price :thumbup:

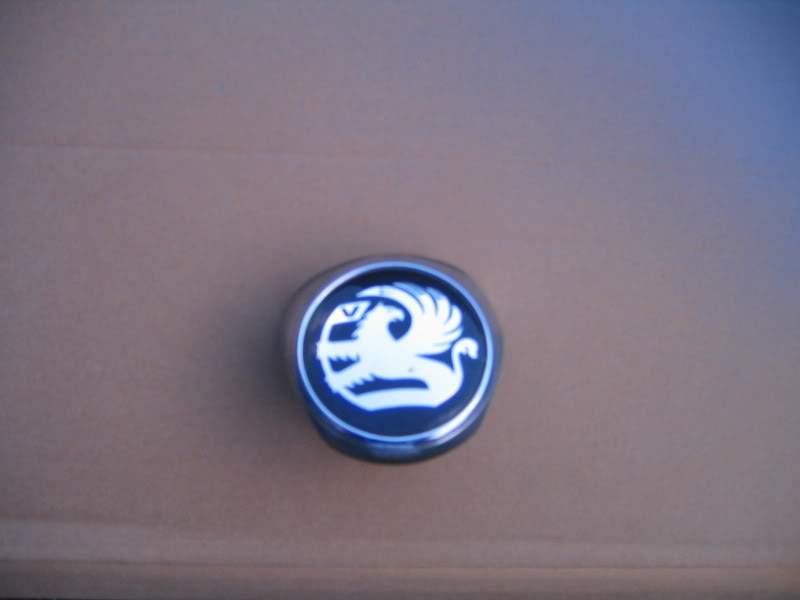

I removed the chrome V and centre badge.

Key'd the surface sanding with 400 then 600 W&D. I wasnt 100% sure how the plastic primer would bond to the surface so i gave it two coats of plastic filler primer left 24hrs and then sanded back then standard plastic primer, currently it has two coats of normal plastic primer.

The photos

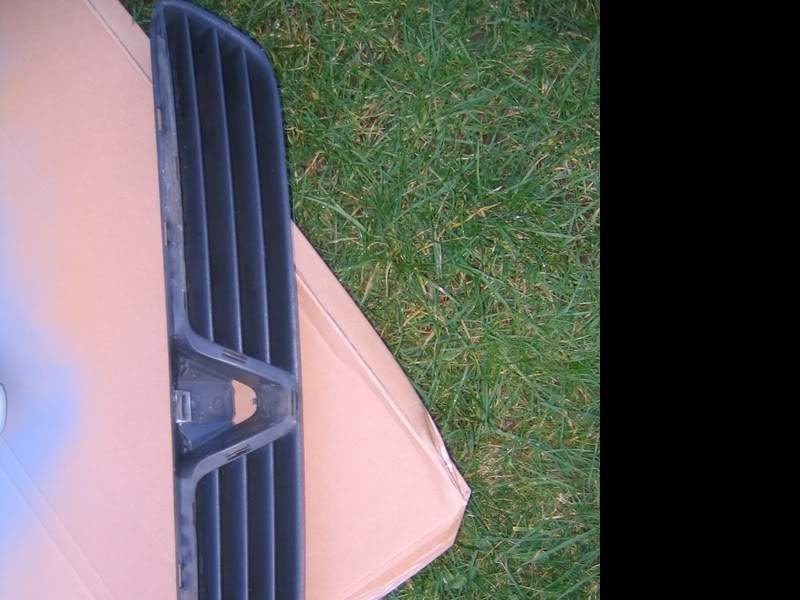

The grill dismantled

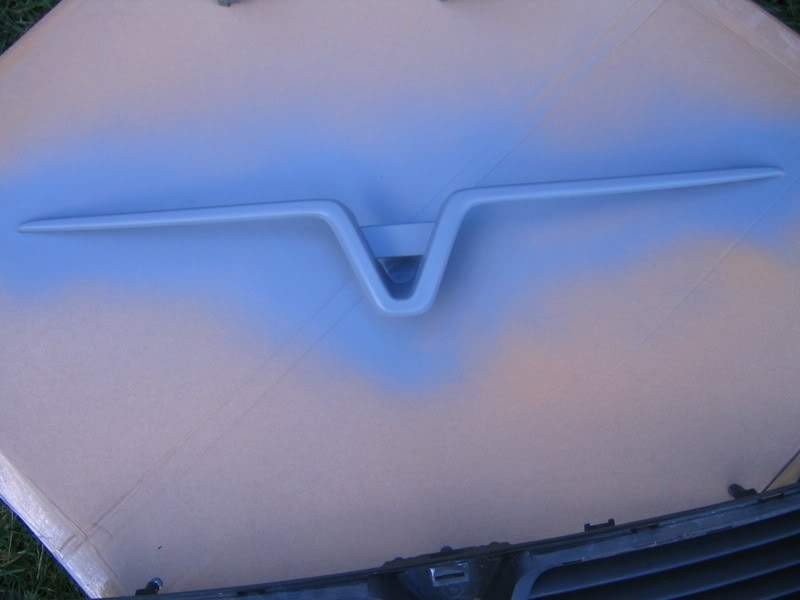

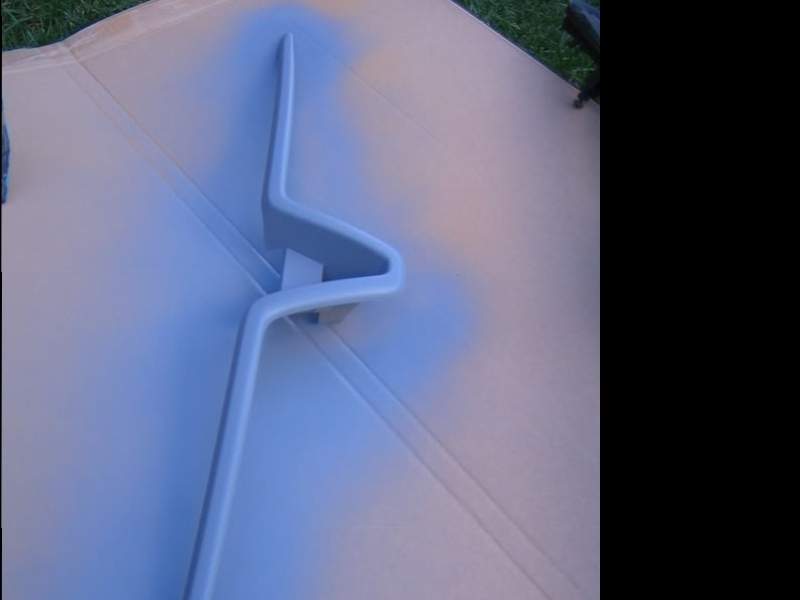

Grill with the latest coat of plastic primer on.

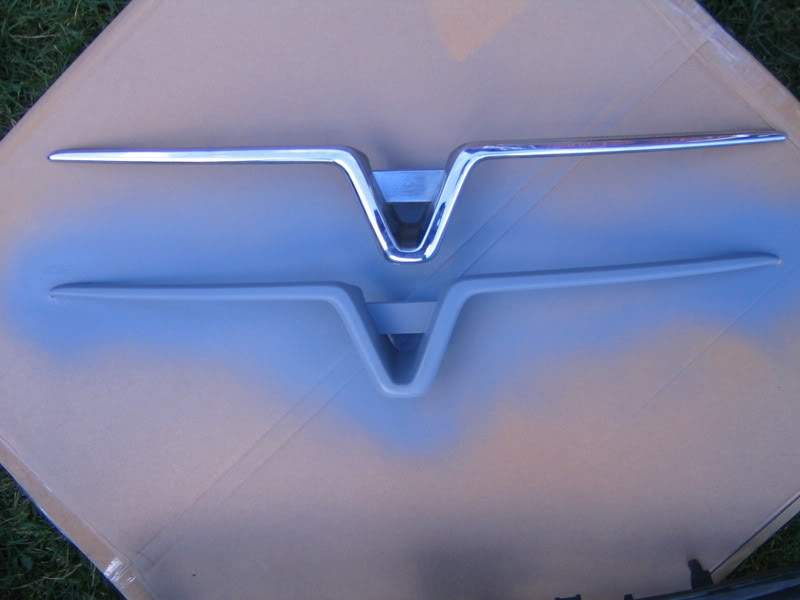

Then the chrome and the painted one togeather

I should get this done for the weekend more photos to follow.

Only thing i am not sure is if i should spray the outer edge of the centre badge or leave it chrome dunno..

ecky1972

good results si badge could be fiddly

robo22sri

nice one si, i wondered what you wanted a standard grille for lol

Sjdickso

ecky1972 said:
good results si badge could be fiddly

I thought that as well may just give it a good polish.

robo22sri said:
nice one si, i wondered what you wanted a standard grille for lol

I quite like the OE look but slightly modded so will see how it goes.

Matt

Nice work there mate.

Drakey

Looks good, Ive followed the trend and always 1st mod...the grille, the V-grille does have a nice look to it Ive always thought.
Gonna look neat mate.

sdbutler10

i sprayed the griffin when i did mine. i dod it green along with the V i did green as well.
it is really fiddley spraying the griffin but worth it. make sure you spray the chrome around the badge as well.

Mark_Dj

Looks good, I remember doing a bit of modding on my old Sri 2.2 as I was not happy with the standard grill.

Picture in this link
https://img.photobucket.com/albums/v318/ ... rkdjrr.jpg

Sjdickso

Well here we go.

I decided to do the centre section it was slightly tricky and after pealing back the tape i wasnt 100% happy but when all put back togeather i think it looks good.

Here are the pics

After 4 coats of colour

Dont know if you see can see but the flake popped quite well when the sun popped out.

Then all put back togeather.

Matt

Looks good mate, looking forward to seeing what it looks like fitted to the car.

Sjdickso

Gave a car a fairly good wash, see the poor beading car hasnt be wax'd in a couple of months. Before i polished the car i fitted the grill.

Irmsher one

CC OE one

What do you think Yay or Nay ?

Matt

Will look better with the plastic treated mate.

Sjdickso

Cheers mate.

The pictures are pritty poor and i used my old camera.

robo22sri

that looks good si! you going to swap back to that grille now?

Sjdickso

robo22sri said:
that looks good si! you going to swap back to that grille now?

I think so, could do with some funds to pay for some new discs so looks like the Irmsher one is going to go.

Drakey

Looks good Si, need to get some pictures further away sometime.....but YES...like it.

Sjdickso

Drakey said:
Looks good Si, need to get some pictures further away sometime.....but YES...like it.

cheers.. will get some better pictures soon.

vocky

looks very smart 8)

Wiswion

looks way better OE i think
but... you've should repaint the whole grill to make it look brand new 🙂

Daniel

thats what i done on my old black astra looks smart m8 🙂 think it just looks better and loads ppl have the after math 1 lol
