Project Freeze My Ass Off (rear Poly Bush's Astra G)

evocarlos

Stupid Bollocks
Staff
right road trip is over and i got more than i hoped for :)
dash loom from a cab :( different plugs for rear loom connection not sure i can use it for auto-level head lights yet


the other bits on this table
climate control air box
springs
insignia washer jets
dash trim to suit climate control controller
new gm sprocket from voccy (thanks buddy)






oooo whats this :) damn near saved myself £100 on the springs :)


evocarlos

Stupid Bollocks
Staff
evocarlos updated Evo's Astra Coupe 2.2 2004

2004 Vauxhall Astra Coupe Bertone edition 2.2 16v Silver lightning
bought on the 14th January 2005 only 3365miles on the clock

ive had the car all this time and still love driving it
has only got 55k on the clock now still plenty left :)

working on keeping the car clean and doing a Restoration rear to front 2012-2013
View updates to this showcase item...

Last edited by a moderator:

Daz

Former Staff
Senior Member
Mate of mine retro fitted climate to his vec b gsi a few years back... his words after were . NEVER AGAIN


evocarlos

Stupid Bollocks
Staff
Looking forward to seeing how you fit the climate control, it's been something I've always wanted to have a go at :)
its a right bitch
remove dash
remove dash loom
drain the water
drain the a/c
find all the wires to make it work and solder them in
Mate of mine retro fitted climate to his vec b gsi a few years back... his words after were . NEVER AGAIN
yep i have this to look forward to the next 2 days :)


evocarlos

Stupid Bollocks
Staff
have to opcom it in as well
will op-com actually tell the car cooling unit it has climate control ? (is it programmable with op-com)
or is going to be one of these op-com not supported things like every other feature on it


Daz

Former Staff
Senior Member
Never tried it on the g. But the options are there on the h.

Sent from my GT-I9300 using Tapatalk 2


MikeS

Former Staff
Senior Member
I remember someone messing about with a vectra b gsi and enabling climate control using opcom

I don't think they got it working


evocarlos

Stupid Bollocks
Staff
i did plug in op-com to see if there were any options but the controller is not connected to pin 12 so showed no results

spent the best part of this morning doing a HEMAN on the dash


i opted to leave the loom in the car and then take the dash off it will have to remove the loom to modify it


the dog was also helpfull


its out :)


evocarlos

Stupid Bollocks
Staff
looks like ive stared somthing that going to take longer than i thought
got to jack the car up now to remove the drain off the air box :(
also what size is the screw in the engine bay loom to body ?
and the doors may have to come off the bolts on the metal beam are 18.6 feet long


evocarlos

Stupid Bollocks
Staff
18.6 feet long? will the heater box not come out any other way
is that meant to be 18.6 inches long?
yep there way to long what ever there length lol
the only way to get it out is to remove dash and support beam

got it sorted now so i dont have to take the doors off cut the excess off the bolt enuff to remove the beam and clear the door
also had to remove the brake and clutch pedal as they were bolted to the beam
lol


there is so much more to do just to get the box out


wiper arms off
plastic under the wiper arms
lift car up and drain cooling system
also undo the air box drain screws
drain the a/c if i can find my connecter

and remember the auto levelers ? there now dead had to cut the wires cause like a Muppet i put them thru the support on the beam DOH!


evocarlos

Stupid Bollocks
Staff

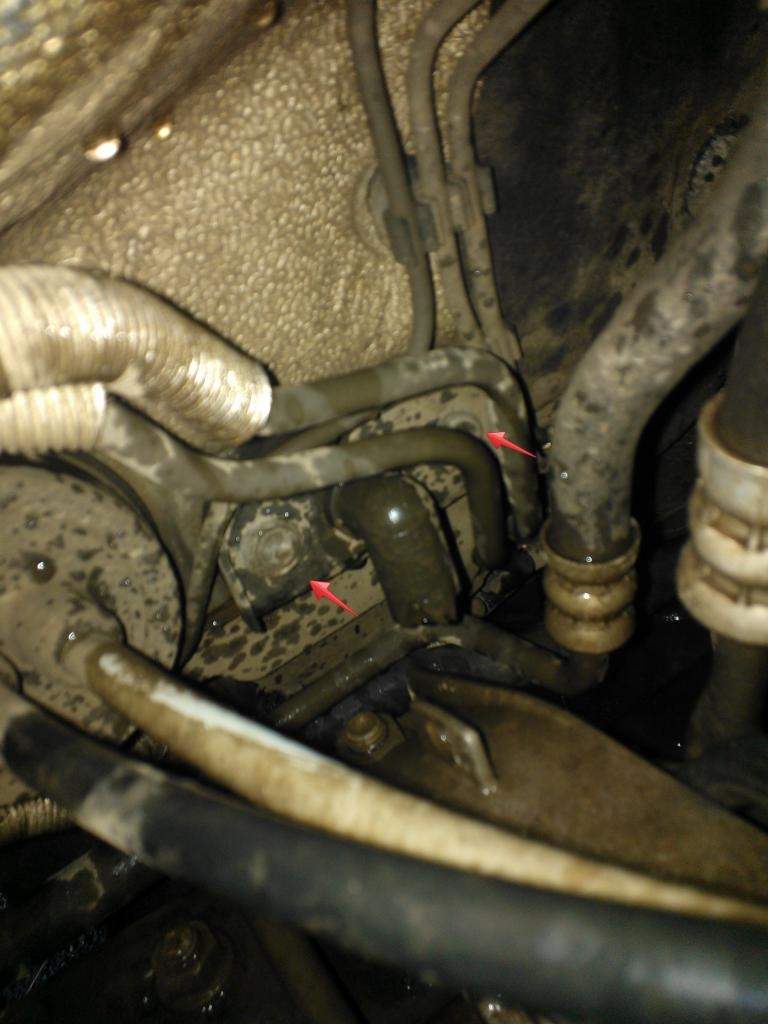

could these to screws on the drain be any more of a pain in the ass

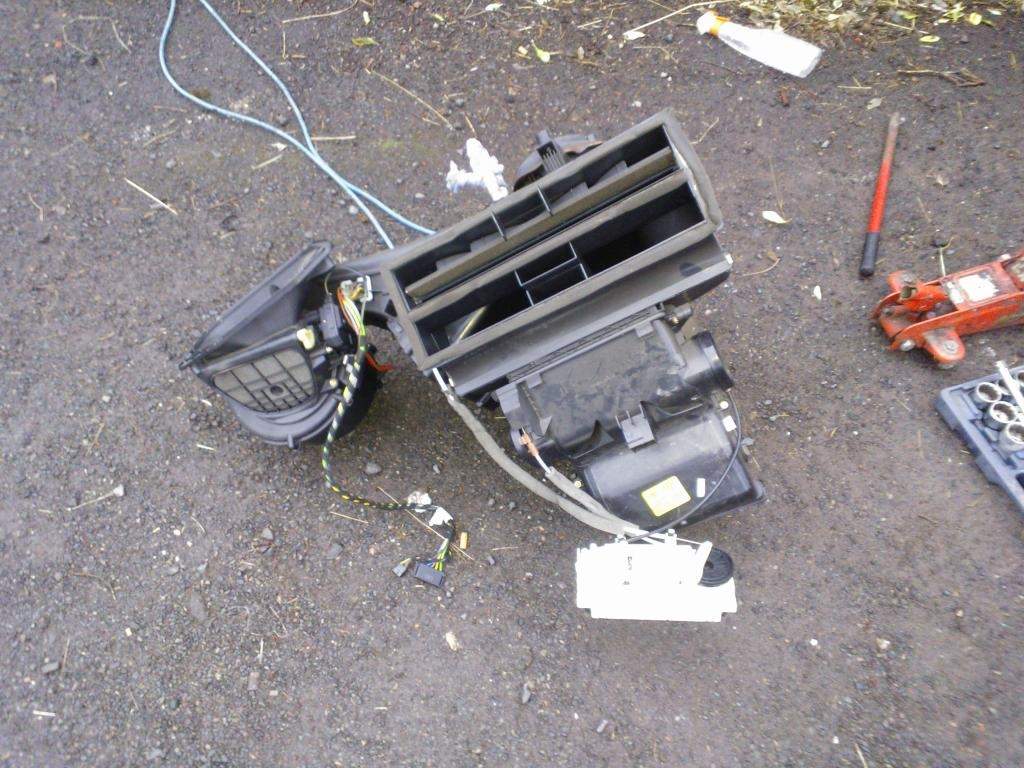

but at last its out

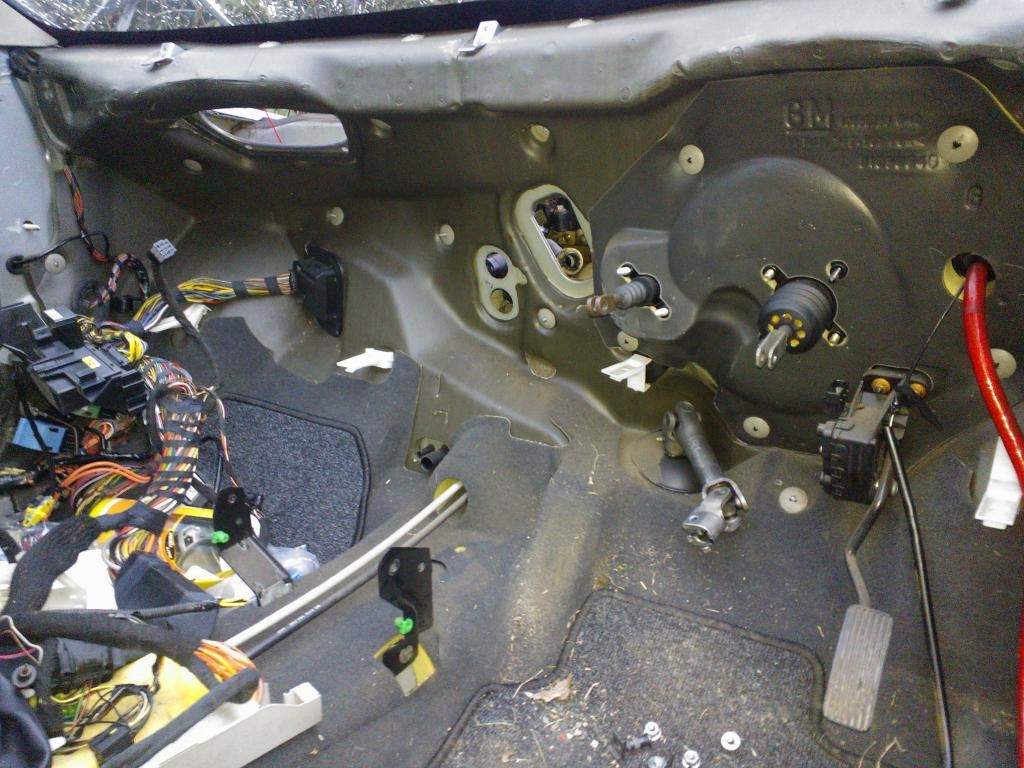

bit empty in here must get the vac on the carpet :)


im still waiting for someone to tell me how to separate the bulkhead connector :)


Attachments

  • ai556.photobucket.com_albums_ss6_evocarlos1_WP_000352.jpg
    69.6 KB · Views: 334
  • ai556.photobucket.com_albums_ss6_evocarlos1_WP_000353.jpg
    130.8 KB · Views: 318
  • ai556.photobucket.com_albums_ss6_evocarlos1_WP_000354.jpg
    114.4 KB · Views: 379
Last edited:

Daz

Former Staff
Senior Member
Is that the ones with the green bit in them

Sent from my GT-I9300 using Tapatalk 2
